| MODEL | EFFECTIVE WORKING PRESSURE | FREE AIR DELIVERY | MOTOR POWER | OUTLET | SOUND LEVEL | DIMENSIONS L x W x H | WEIGHT | |||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | m³/min | CFM | HP | kW | G | dB(A) | mm | (Kg) | |

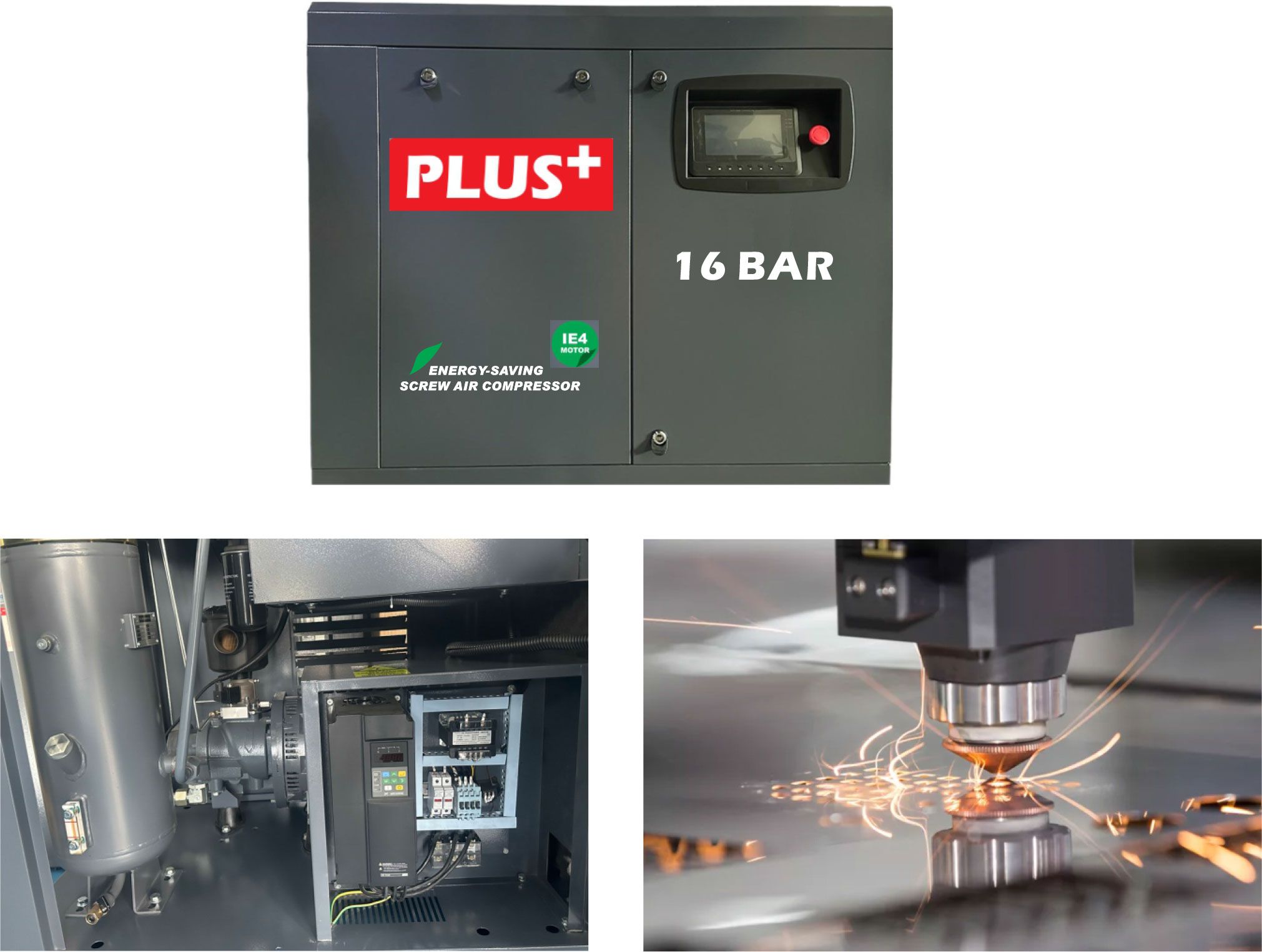

| PLUS 20 D PM - H | 16 | 232 | 1,40 | 49 | 20 | 15 | G 3/4" | 69 | 1150 x 750 x 960 | 250 |
| PLUS 30 D PM - H | 16 | 232 | 2,20 | 78 | 30 | 22 | G 1" | 70 | 1150 X 750 X 960 | 250 |
| PLUS 50 D PM - H | 16 | 232 | 3,20 | 113 | 50 | 37 | G 1" | 72 | 1200 X 960 X 1320 | 370 |
Free Air Delivery: Acc. to ISO 1217:2009
Sound Level: Acc. to ISO 2151 and 9614
Vikoser GmbH reserves the right to change the specifications and design without prior notice
